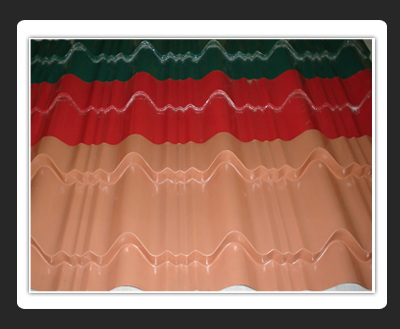

| Description | Description | High Tensile (350-550)Mpa) |
| Through Depth | 28.50 mm+ - 1 | 28.50 mm+-1 |
| Pitch – Centre to Center | 178 mm | 178 mm |
| Tile | 3 – 30 mm | 10 – 12 mm |

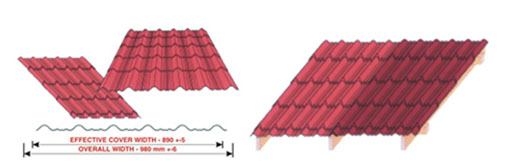

| Sheet Width | 980/1065 mm | 980/1065 mm |
| Covered Width | 890 mm | 890 mm |
| Tile Pitch | 100-350 mm | 100-350 mm |
| Length | Upto 14 meters | Upto 14 meters |
| Thickness | 0.3-0.8 mm | 0.3-0.8 mm |

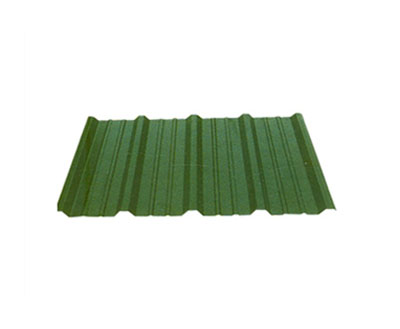

| Description | Description |

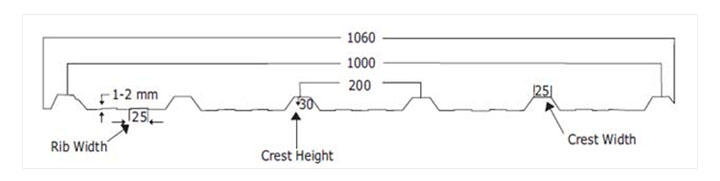

| Coil Input Width | 1220 mm |
| Supply Width | 1070 _+ 5 mm |
| Covered Width | 1000 mm |
| Pitch | 200 mm |
| Crest Height | 30_+ 1 mm |
| Crest Width | 25 mm |
| Rib Height | 1-2 mm as per thickness of coil |
| Rib Width | 25 mm |
| Lenght | As requried |
| No. of Profiles | 06 |
| No. of Ribs | 02 |
| Thickness Range | 0.30 mm to 0.80 mm |
